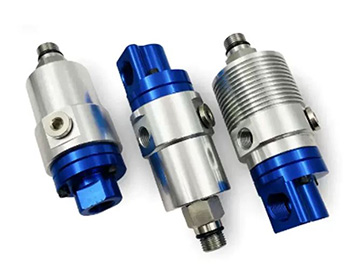

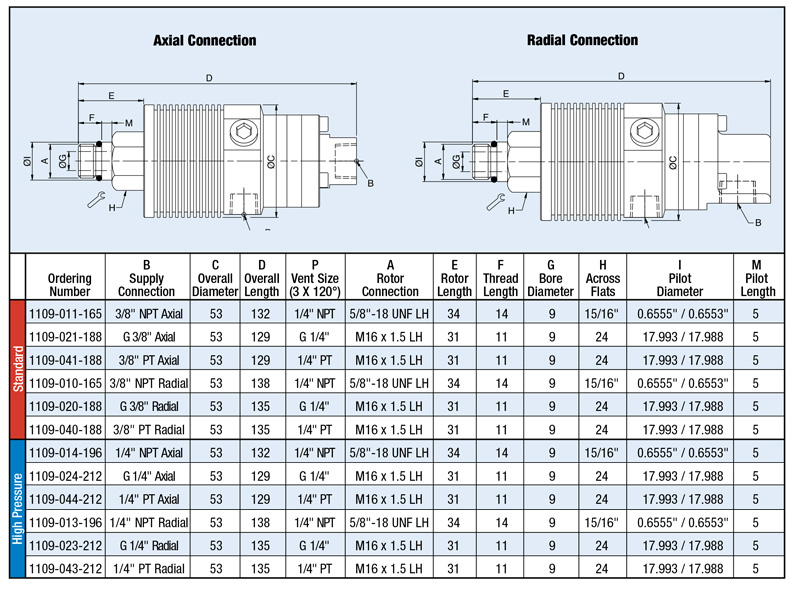

CGS1109 High Speed Rotary Union

The CGS series rotary joint is used for high speed, high pressure applications, the media can be coolant and MQL, balanced sealing design, Mainly used for deep holes machining center, CNC and etc.

  • Single passage for coolant or MQL
  • Closed seals for transfer line and similar applications
  • Full-flow design has no obstructions to trap swarf or debris
  • Bearing-supported with threaded rotor for easy installation
  • Labyrinth system and large vents to protect ball bearings
  • Balanced mechanical seals made from silicon carbide for long life even under difficult operating conditions
  • Anodized aluminum housing and stainless steel rotor resist corrosion
coolant rotary union
