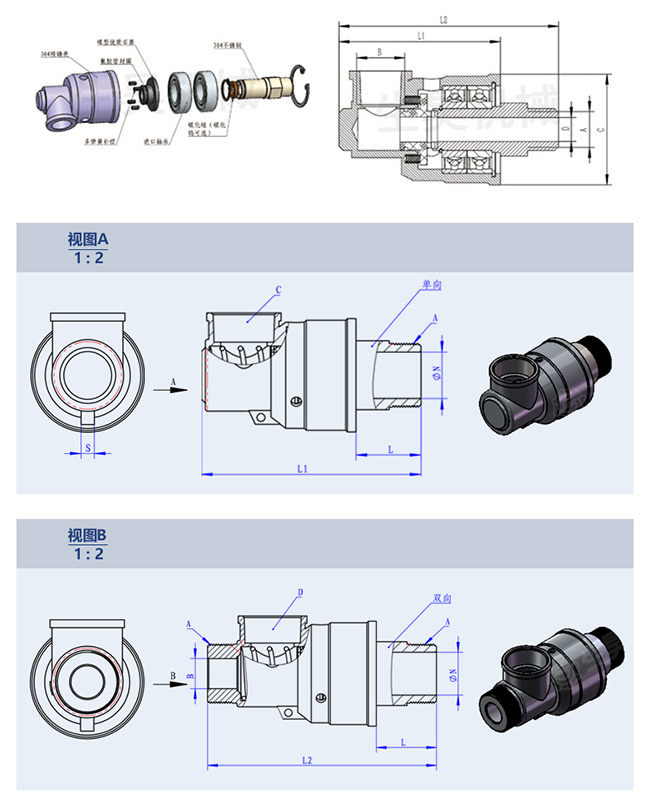

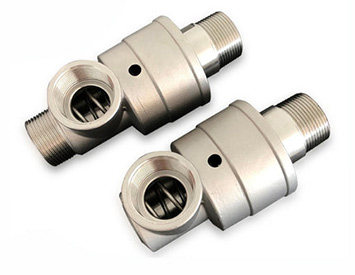

| Model |
A |
B |
C |
D |
N |
L |
L1 |
L2 |
| CHS-15 |
R1/2" |
G1/8" |
Rc1/2" |
Rc1/2" |
12 |
35 |
112 |
120 |
| CHS-20 |
R3/4" |
G1/4" |
Rc3/4" |
Rc3/4" |
18 |
42 |
132 |
145 |
| CHS-25 |
R1" |
G3/8" |
Rc1" |
Rc1" |
22 |
48 |
153 |
162 |
| CHS-32 |
R1-1/4" |
G1/2" |
Rc1-1/4" |
Rc1-1/4" |
30 |
53 |
165 |
176 |
| CHS-40 |
R1-1/2" |
G3/4" |
Rc1-1/2" |
Rc1-1/2" |
36 |
60 |
180 |
190 |
| CHS-50 |
R2" |
G1" |
Rc2" |
Rc2" |
46 |
66 |
195 |
225 |
Not all of the type show in this table. Please send your requires to us, connection size, media, temperature, pressure, operating speed, GPM, monoflow or dual flow(rotary internal pipe or stationary internal pipe), left-hand or right-hand.
How to customize:
If you have other special requirements,pls contact us.Such as legth,height or other dimensions limit:
order procedure of customized Rotary Union:
Step 1----- Contact us, Provide an overview of your goals and some details on the requirements of the Rotary Union for your application. A simple sketch is also helpful.
Step 2----- Our team will reach out to you to start learning more about your project and the technical requirements.
Step 3----- We will consider all aspects of your requirement and work together as a team to develop the best solution.
Step 4----- We will prepare and present a detailed proposal that explains the proposed design, examples of similar past projects, cost breakdown, proposed validation testing and delivery timeline.
Step 5-----Clear communication and detailed planning are keys to success. We will provide a detailed schedule, project timeline, and project manager so you know who to go to with any questions throughout the process. Our goal is to fully understand your expectations, provide a clearly defined plan and fulfill the plan to meet your delivery requirements.
Mounting Flange
