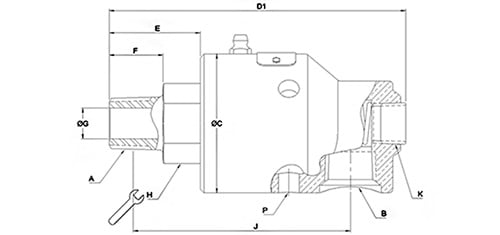

| Model |
B(NPT) |
A(BSP) |
C |
D1 |
E |
F |
G |
H |
J |
K(NPT) |
| CHW-10 |
3/8" |
G3/8" |
44.5 |
102 |
26 |
16 |
9.5 |
22.2 |
63 |
1/4" |
| CHW-15 |
1/2" |
G1/2" |
57.2 |
120 |
34 |
19 |
12.7 |
28.6 |
78 |
3/8" |
| CHW-20 |
3/4" |
G3/4" |
73 |
138 |
34 |
19 |
17.5 |
32 |
94 |
1/2" |
| CHW-25 |
1" |
G1" |
75.4 |
166 |
42 |
21.5 |
22.2 |
38.1 |
108 |
3/4" |
| CHW-32 |
1 1/4" |
G1 1/4" |
90.5 |
191 |
54 |
27 |
30.2 |
44.5 |
119 |
1" |
| CHW-40 |
1 1/2" |
G1 1/2" |
108 |
225 |
71 |
29 |
35 |
54 |
147 |
1 1/4" |
| CHW-50 |
2" |
G2" |
117 |
246 |
65 |
28.6 |
47 |
55 |
164 |
1 1/4" |
Mono flow will insert a plug in the end, Dual flow will add elbow in the end(stationary internal pipe).

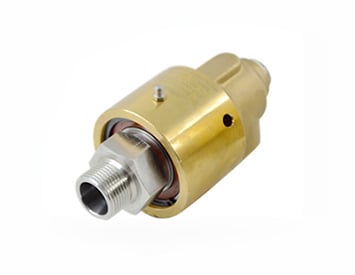

This kind of rotary union can entirely replace 55/57 series G3/8", 155/157 G1/2", 255/257 G3/4", 355/357 G1", 525/527 G1-1/4", 555/557 G1-1/2", 655/657 G2", M20, M27, M35 and etc.
How to customize:
If you have other special requirements,pls contact us.Such as legth,height or other dimensions limit:
order procedure of customized Rotary Union:
Step 1----- Contact us, Provide an overview of your goals and some details on the requirements of the Rotary Union for your application. A simple sketch is also helpful.
Step 2----- Our team will reach out to you to start learning more about your project and the technical requirements.
Step 3----- We will consider all aspects of your requirement and work together as a team to develop the best solution.
Step 4----- We will prepare and present a detailed proposal that explains the proposed design, examples of similar past projects, cost breakdown, proposed validation testing and delivery timeline.
Step 5-----Clear communication and detailed planning are keys to success. We will provide a detailed schedule, project timeline, and project manager so you know who to go to with any questions throughout the process. Our goal is to fully understand your expectations, provide a clearly defined plan and fulfill the plan to meet your delivery requirements.
