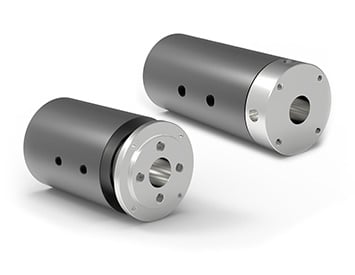

Through Bore Rotary Union

Through bore rotary union is designed for single and multi-passage rotary union. 10-260mm through bore, for pneumatic and hydraulic media.

10-260mm through bore
Max. Pressure:10~350 Bar
Max. Rotational Speed:0~200RPM
Contact us to get the solutions

Specification

Model Explanation

Options

Installation


Number of passage	1~12
Connection Size	1/8" ~ 1"
Pressure	10~350 Bar
Through hole size	10~260mm
Suitable Media	Air, Vacuum, Hydraulic
Temperature	-18°C~150°C
Housing Material	Aluminum Alloy
Speed	0~200 RPM

Notes: Please contact us to get the solutions. The specfications we need to know: Through bore size, media, pressure, operating speed, temperature, passage number, connection size.
