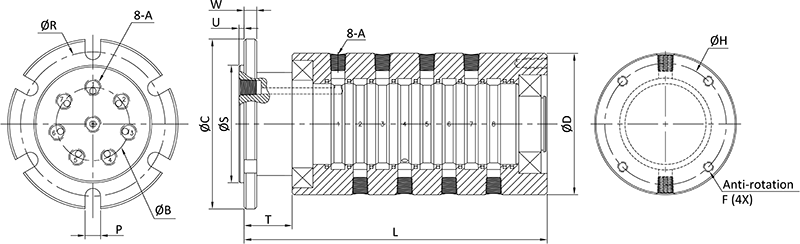

| Model |
A(BSPP / NPT) |
ФB |
ФC |
ФD |
ФR |
ФS |
U |
W |
T |
P |
F |
ФH |
L |
| MP-801-H |
1/8" |
53 |
94.5 |
74.5 |
84 |
72.5 |
3 |
6 |
24 |
6.5 |
M6 |
64 |
211.4 |
| MP-802-H |
1/4" |
58 |
104 |
79 |
93.5 |
81 |
3 |
6 |
24 |
6.5 |
M6 |
68.5 |
229.4 |
| MP-803-H |
3/8" |
67 |
114.5 |
98.5 |
104 |
93 |
3 |
6 |
24 |
6.5 |
M6 |
88 |
267.6 |
| MP-804-H |
1/2" |
81 |
139.5 |
109 |
126.5 |
112.5 |
3 |
8 |
32 |
9 |
M8 |
96 |
320.6 |
| MP-805-H |
3/4" |
100 |
164.5 |
133.5 |
151.5 |
121 |
4 |
9 |
32 |
9 |
M8 |
120.5 |
361.6 |

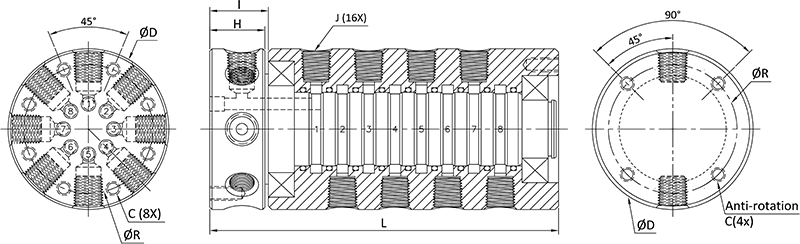

| Model |
J(BSPP / NPT) |
ФR |
C |
ФD |
H |
I |
L |
| AP-801-H |
1/8" |
64 |
M6 |
74.5 |
19.5 |
20 |
214.5 |
| AP-802-H |
1/4" |
64 |
M6 |
74.5 |
22.5 |
23 |
228.4 |
| AP-803-H |
3/8" |
79 |
M6 |
89.5 |
28.5 |
29 |
278.4 |
| AP-804-H |
1/2" |
97 |
M8 |
109.5 |
33.5 |
34 |
320.5 |
| AP-805-H |
3/4" |
117 |
M8 |
129.5 |
42.5 |
43 |
368.4 |
| AP-806-H |
1" |
135 |
M10 |
149.5 |
56.5 |
57 |
443.5 |
Notes: Dimensions are in millimeters (mm); The dimensions would be have little difference according to the media, pressure. Please contact us to get the solutions.
 Mounting Flange
Connection Size
Connection Type
Material
Pressure
Media
Optional Speed
How to customize:
If you have other special requirements,pls contact us.Such as legth,height or other dimensions limit:
order procedure of customized Rotary Union:
Step 1----- Contact us, Provide an overview of your goals and some details on the requirements of the Rotary Union for your application. A simple sketch is also helpful.
Step 2----- Our team will reach out to you to start learning more about your project and the technical requirements.
Step 3----- We will consider all aspects of your requirement and work together as a team to develop the best solution.
Step 4----- We will prepare and present a detailed proposal that explains the proposed design, examples of similar past projects, cost breakdown, proposed validation testing and delivery timeline.
Step 5-----Clear communication and detailed planning are keys to success. We will provide a detailed schedule, project timeline, and project manager so you know who to go to with any questions throughout the process. Our goal is to fully understand your expectations, provide a clearly defined plan and fulfill the plan to meet your delivery requirements.
| |
| Hydraulic Channel | 8 |
| Max.Pressure | 20bar |
| Connection type | NPT, BSPP |
| Suitable Media | Oil, Water, Coolant |
| Temperature | -18° C to 150° C |
| Material | Carbon Steel or Stainless Steel |
| Speed | Max. 200rpm |
| |
All values listed under Technical Specifications are dependent on a combination of all application parameters. Please note operational life is dependent upon both rotational speed and duty cycle. Contact COSMAU if your application requires operating close to the maximum rotational speed with a continuous duty cycle. Please consult with COSMAU regarding your specific application requirements.
How to order: choose your options
Model No. Description: MP-201-G
MP:
MP --MP Series(BSPP Connection);
MPN --MPN Series(NPT Connection);
MPS --MPS Series Stainless Steel(BSPP Connection);
MPSN --MPSN Series Stainless Steel(NPT Connection).
201:
2 --Two Passage;
0 --No Thru Bore(1: With Thru Bore);
1 --1/8" Connection Size(2: 1/4" Connection Size; 3: 3/8" Connection Size;
4: 1/2" Connection Size; 5: 3/4" Connection Size; 6: 1" Connection Size);
G:
G --Pneumatic; H--Hydraulic
Example:
MP-201 --MP 2 Passage, 1/8" BSPP Connections.
MPN-412 --MP 4 Passage with Thru bore, 1/4" NPT Connections.
MPSN-1013 --MP 10 Passage with Thru bore, 3/8 NPT Connections(Stainless Steel)
Optional Electrical Slip Rings: MOS Series, STR Series, ETW Series, Etc.
Note: The size, connection type, installation are available custom solutions.
|
