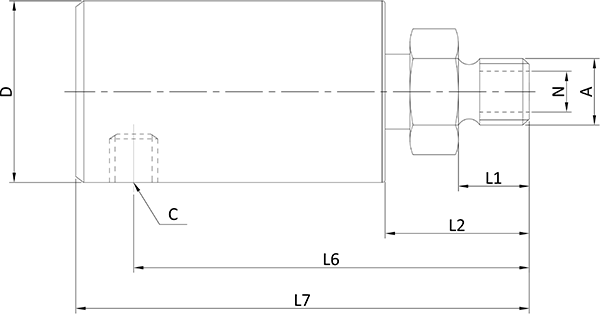

| Model |
A |
C |
ФN |
ФD |
L1 |
L2 |
L6 |
L7 |
| CGY-8 |
R1/4 |
Rc1/4 |
6 |
45 |
13 |
20 |
68 |
80 |
| CGY-10 |
R3/8 |
Rc3/8 |
9 |
45 |
15 |
26 |
78 |
93 |
| CGY-15 |
R1/2 |
Rc1/2 |
12 |
48 |
16 |
28 |
78 |
95 |
| CGY-20 |
R3/4 |
Rc3/4 |
16 |
60 |
18 |
33 |
92 |
108 |
| CGY-25 |
R1 |
Rc1 |
23 |
63 |
20 |
35 |
105 |
125 |
| CGY-32 |
R1-1/4 |
Rc1-1/4 |
30 |
78 |
23 |
43 |
125 |
158 |
| CGY-40 |
R1-1/2 |
Rc1-1/2 |
35 |
88 |
25 |
55 |
140 |
172 |
Notes: Drawings not actual size, dimensions are in millimeters. Max.pressure: 25MPa, 100RPM

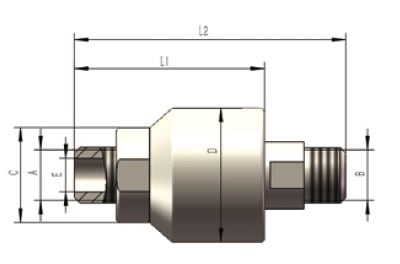

| Model |
A |
B |
C |
D |
E |
L1 |
L2 |
| CGYD-15 |
R1/2" |
R1/2" |
34 |
48 |
12 |
68 |
97 |
| CGYD-20 |
R3/4" |
R3/4" |
40 |
55 |
16 |
78 |
112 |
| CGYD-25 |
R1" |
R1" |
45 |
63 |
22 |
84 |
123 |
| CGYD-32 |
R1-1/4" |
R1-1/4" |
60 |
78 |
28 |
90 |
134 |
| CGYD-40 |
R1-1/2" |
R1-1/2" |
64 |
88 |
36 |
90 |
136 |
Notes: Drawings not actual size, dimensions are in millimeters. Max.pressure: 25MPa, 100RPM

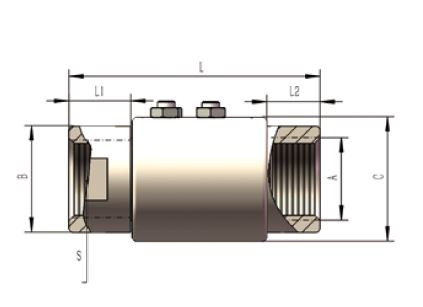

| Model |
A |
B |
C |
L1, L2 |
L |
S |
| CGYDH-10 |
Rc3/8" |
28 |
28 |
19 |
64 |
24 |
| CGYDH-15 |
Rc1/2" |
30 |
33 |
14 |
72 |
26 |
| CGYDH-20 |
Rc3/4" |
36 |
42 |
18 |
85 |
32 |
| CGYDH-25 |
Rc1" |
44 |
53 |
24 |
100 |
40 |
| CGYDH-32 |
Rc1-1/4" |
54 |
64 |
32 |
115 |
50 |
Notes: Drawings not actual size, dimensions are in millimeters. Max.pressure: 40MPa, 50RPM

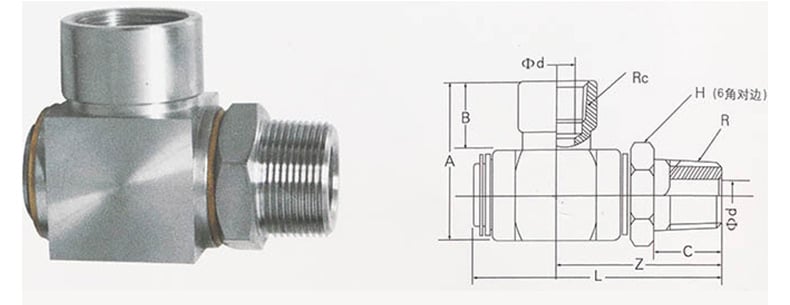

| Model |
Connection |
L |
A |
B |
d |
C |
H |
Z |
| CGYDJ-04 |
Rc1/4" |
49 |
36 |
17 |
5 |
16 |
19 |
31 |
| CGYDJ-06 |
Rc3/8" |
56 |
42 |
20 |
8 |
19 |
22 |
36 |
| CGYDJ-08 |
Rc1/2" |
66 |
50 |
23 |
11 |
22 |
27 |
43 |
| CGYDJ-12 |
Rc3/4" |
80 |
63 |
27 |
16 |
25 |
36 |
51 |
| CGYDJ-16 |
Rc1" |
89 |
70 |
29 |
21 |
28 |
41 |
57 |
| CGYDJ-20 |
Rc1-1/4" |
102 |
81 |
31 |
28 |
30 |
50 |
64 |
| CGYDJ-24 |
Rc1-1/2" |
116 |
93 |
33 |
34 |
32 |
55 |
72 |
| CGYDJ-32 |
Rc2" |
129 |
106 |
36 |
43 |
35 |
70 |
80 |

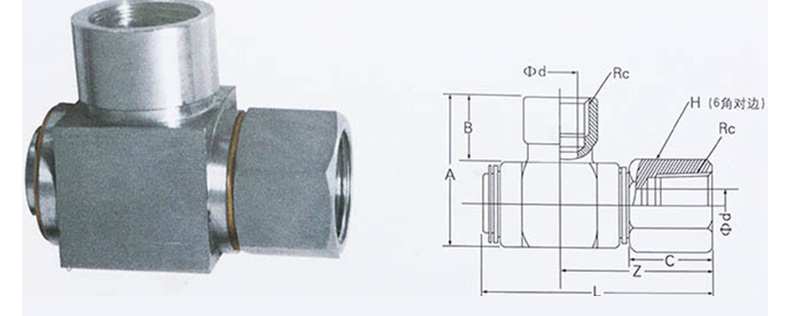

| Model |
Connection |
L |
A |
B |
d |
C |
H |
Z |
| CGYDJ-04B |
Rc1/4" |
54 |
36 |
17 |
5 |
13 |
19 |
36 |
| CGYDJ-06B |
Rc3/8" |
62 |
42 |
20 |
8 |
16 |
22 |
42 |
| CGYDJ-08B |
Rc1/2" |
73 |
50 |
23 |
11 |
19 |
27 |
50 |
| CGYDJ-12B |
Rc3/4" |
88 |
63 |
27 |
16 |
21 |
36 |
59 |
| CGYDJ-16B |
Rc1" |
97 |
70 |
29 |
21 |
23 |
41 |
65 |
| CGYDJ-20B |
Rc1-1/4" |
111 |
81 |
31 |
28 |
25 |
50 |
73 |
| CGYDJ-24B |
Rc1-1/2" |
126 |
93 |
33 |
34 |
27 |
55 |
82 |
| CGYDJ-32B |
Rc2" |
144 |
106 |
36 |
43 |
30 |
70 |
95 |
Notes: Drawings not actual size, dimensions are in millimeters. Max.pressure: 20MPa, 50RPM
How to customize:
If you have other special requirements,pls contact us.Such as legth,height or other dimensions limit:
order procedure of customized Rotary Union:
Step 1----- Contact us, Provide an overview of your goals and some details on the requirements of the Rotary Union for your application. A simple sketch is also helpful.
Step 2----- Our team will reach out to you to start learning more about your project and the technical requirements.
Step 3----- We will consider all aspects of your requirement and work together as a team to develop the best solution.
Step 4----- We will prepare and present a detailed proposal that explains the proposed design, examples of similar past projects, cost breakdown, proposed validation testing and delivery timeline.
Step 5-----Clear communication and detailed planning are keys to success. We will provide a detailed schedule, project timeline, and project manager so you know who to go to with any questions throughout the process. Our goal is to fully understand your expectations, provide a clearly defined plan and fulfill the plan to meet your delivery requirements.
How to order: choose your options
Model No. Description: CGY-8-RH
CGY: High pressure
8: Rc1/4
10 --Rc3/8 thread size
15 --Rc1/2 thread size
20 --Rc3/4 thread size
25 --Rc1 thread size
RH: Rotor thread direction --Right;
LH: Rotor thread direction --Left;
Mounting Flange
