| Model |
A |
C |
B(mm) |
D(mm) |
H(mm) |
L1(mm) |
L(mm) |
| CGYDF-8 |
R1/4" |
Rc1/4" |
25 |
7 |
26 |
37 |
59 |
| CGYD-10 |
R3/8" |
Rc3/8" |
27 |
9 |
29 |
39 |
63 |
| CGYD-15 |
R1/2" |
Rc1/2" |
32 |
12 |
33 |
46 |
76 |
| CGYD-20 |
R3/4" |
Rc3/4" |
39 |
15 |
39 |
49 |
83 |
| CGYD-25 |
R1" |
Rc1" |
45 |
18 |
45 |
55 |
96 |

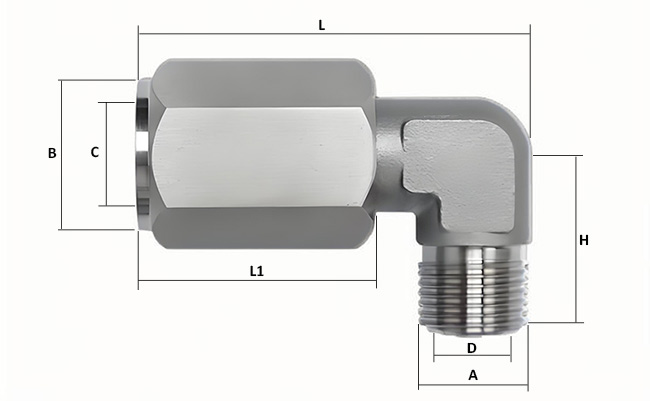

Notes: Drawings not actual size, dimensions are in millimeters. Max.pressure: 30MPa, 150RPM, Male-Male, Female-Female connection are available.
How to customize:
If you have other special requirements,pls contact us.Such as legth,height or other dimensions limit:
order procedure of customized Rotary Union:
Step 1----- Contact us, Provide an overview of your goals and some details on the requirements of the Rotary Union for your application. A simple sketch is also helpful.
Step 2----- Our team will reach out to you to start learning more about your project and the technical requirements.
Step 3----- We will consider all aspects of your requirement and work together as a team to develop the best solution.
Step 4----- We will prepare and present a detailed proposal that explains the proposed design, examples of similar past projects, cost breakdown, proposed validation testing and delivery timeline.
Step 5-----Clear communication and detailed planning are keys to success. We will provide a detailed schedule, project timeline, and project manager so you know who to go to with any questions throughout the process. Our goal is to fully understand your expectations, provide a clearly defined plan and fulfill the plan to meet your delivery requirements.
How to order: choose your options
Model No. Description: CGYDF-8

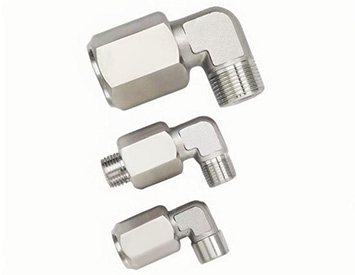

CGYDF: High pressure
8: Rc1/4
10 --Rc3/8 thread size
15 --Rc1/2 thread size
20 --Rc3/4 thread size
25 --Rc1 thread size
RH: Rotor thread direction --Right;
LH: Rotor thread direction --Left;
Mounting Flange
